What is the combination of BBS Center Caps #09.24.038?

Yesterday I introduced you to RhinoTuning for BBS Center Caps 09.24.030 and provided detailed dimensions, measurements, fitment, and replacement part numbers. So today, let's examine what other parts can be combined with yesterday for 09.24.030 BBS Center Caps.
This for 09.24.030 BBS Center Caps can be combined with wheel center caps from many models, such as BBS center caps #09.24.038, BBS center caps #09.23.131, BBS center caps #09.23.502 and so on.

09.23.502	09.24.038	09.23.131

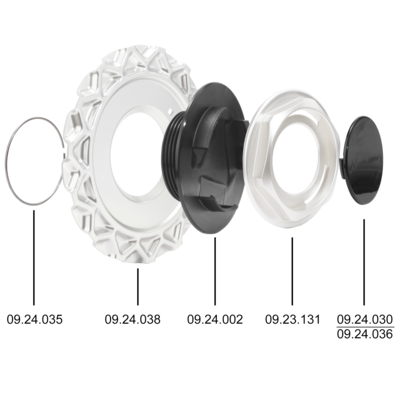

I will take BBS Center Caps #09.24.038 to give you a detailed description, it is made up of a combination of 5 parts.

1.

For BBS Center Caps waffle plates

• Outer Diameter ：151mm(5 15/16in)
• Inner Diameter：57.7mm(2 1/4in)
• Wheel cover height：10mm(3/8in)
Suitable wheels：RS005/RS006
Part Number: 09.24.038

2.

For BBS Center Caps Hex Nut

• Outer Diameter ：102mm（4in）
• Inner Diameter（ The internal diameter does not represent the clamp diameter ）：71.7mm(2 13/16in)
•Clamp installation diameter：68.5mm(2 11/16in)
• Wheel cover height：20mm(25/32in)
Part Number: 09.23.131 09.24.152
Suitable car model： BBS RZ RG 15" 16" BMW E30/E39

3.

For BBS Center Cap Parts For 09.24.002 Thread 57mm

• Outer Diameter ：95mm(3 3/4in)
• Inner Diameter：57mm(2 7/32in)
• Wheel cover height：28mm(1 3/32in)
• Clamp length：18mm(11/16in)
Part Number:
09.24.002

4.

For BBS Center Caps Center Ring

• Wire diameter：58mm（2 9/32in）
• Circle directly ：1.6mm(1/16in)

5.

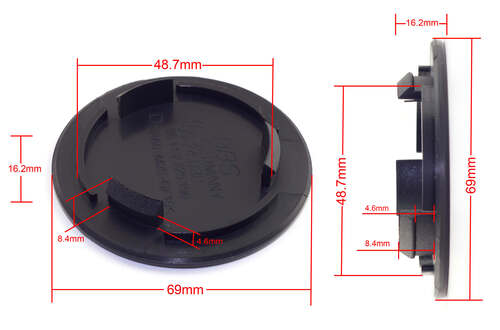

For BBS Center Caps

• Outer Diameter ：69mm(2 23/32in)
• Inner Diameter：48.73mm(1 29/32in)
• Labeling diameter：69mm(2 23/32in)
• Wheel cover height：16.2mm(5/8in)
• Clamp length：8.47mm(5/16in)
• Number of clips：3
Part Number:
Reference here

Except for the steel rings, these parts are all made of plastic. The materials are strong and durable and will not be corroded by rain. If you are missing some parts of BBS Center Caps #09.24.038 and just need the missing parts, contact us, and we can sell them separately. We have more different models for BBS Center Caps waiting for you, please continue to pay attention to the latest news on the blog.

This for 09.24.030 BBS Center Caps can be combined with wheel center caps from many models, such as BBS center caps #09.24.038, BBS center caps #09.23.131, BBS center caps #09.23.502 and so on.
